Project Title:
KENET: CS-IS-EE RF Radiation Activity 2G+, Wi-Fi, IoT 2020, HEALTH Studies.
Kisumu Region Field Measurements
Field location
Kisumu TownField measurements taken from Regnol Fill stn, Fly Over, Nyamasaria Bridge, Kajok jxn, Nyalenda.
Recorded electric field strength [E] variation at different points
Areas with E-Field above 2[V/m]
Jaramogi Oginga Odinga Inst Of Science $ Tech (2.195 – 2.3730)[V/m]
Fly Over Nyamasaria (2.005 - 7.311)[V/m]
Nyamasaria bridge (2.223 – 5.418)[V/m]
Nyalenda A stage (2.220 – 9.937)[V/m]
SDA Centre Nyalenda (2.276 - 7.347)[V/m]
Jaramogi Oginga Odinga Inst Of Science $ Tech (2.195 – 2.3730)[V/m]
Fly Over Nyamasaria (2.005 - 7.311)[V/m]
Nyamasaria bridge (2.223 – 5.418)[V/m]
Nyalenda A stage (2.220 – 9.937)[V/m]
SDA Centre Nyalenda (2.276 - 7.347)[V/m]

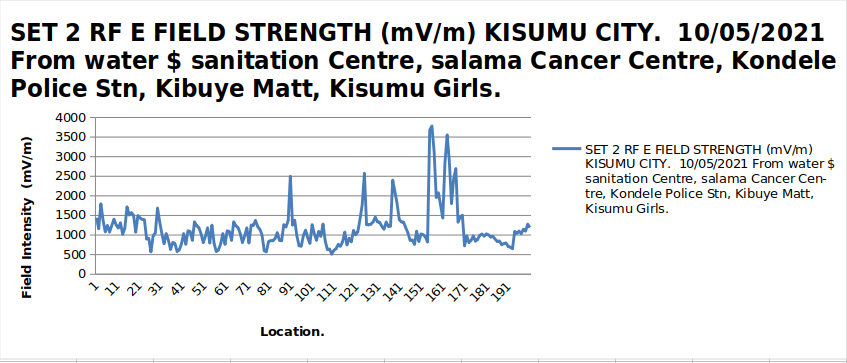

Field location
Kisumu TownField measurements taken from Water & Sanitation Centre, Salama Cancer Centre, Kondele Police Station.
Recorded electric field strength [E] variation at different points
Areas with E-Field above 2[V/m]
Tuffoam Mall Achieng Oneko Rd (2.488 – 4.672)[V/m]
Kisumu Hotel (2.088 – 3.650)[V/m]
The West End (3.074 – 6.260)[V/m]
Got Huma Rd Jumbo Apartments(2.092 – 5.875)[V/m]
Tuffoam Mall Achieng Oneko Rd (2.488 – 4.672)[V/m]
Kisumu Hotel (2.088 – 3.650)[V/m]
The West End (3.074 – 6.260)[V/m]
Got Huma Rd Jumbo Apartments(2.092 – 5.875)[V/m]

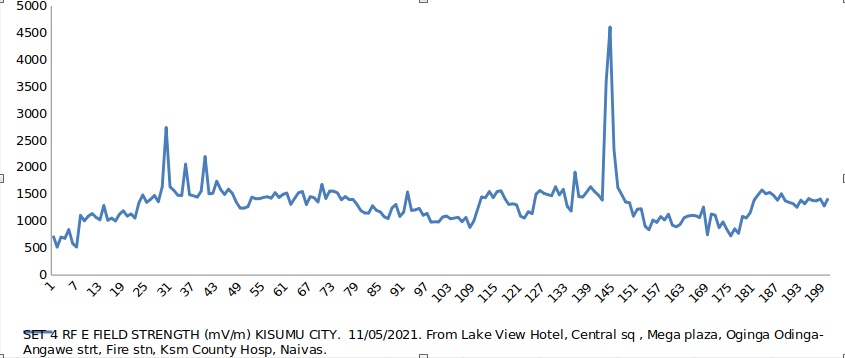

Field location
Kisumu TownField measurements taken from Lake View Hotel, Central sq , Mega plaza, Oginga Odinga- Angawe strt.
Recorded electric field strength [E] variation at different points
Areas with E-Field above 2[V/m]
Moi stadium (2.06 – 2.932)[V/m]
Round about to Kondele (2.05 -8.208)[V/m]
Manyatta Arabs (2.016 - 6.958)[V/m]
CMC Motors Ind Area (2.697 – 8.980)[V/m]
Swan Centre (2.05 – 2.341)[V/m]
Jaramogi gnds Gate Agawe avenue(2.336 – 4.610)[V/m]
Moi stadium (2.06 – 2.932)[V/m]
Round about to Kondele (2.05 -8.208)[V/m]
Manyatta Arabs (2.016 - 6.958)[V/m]
CMC Motors Ind Area (2.697 – 8.980)[V/m]
Swan Centre (2.05 – 2.341)[V/m]
Jaramogi gnds Gate Agawe avenue(2.336 – 4.610)[V/m]

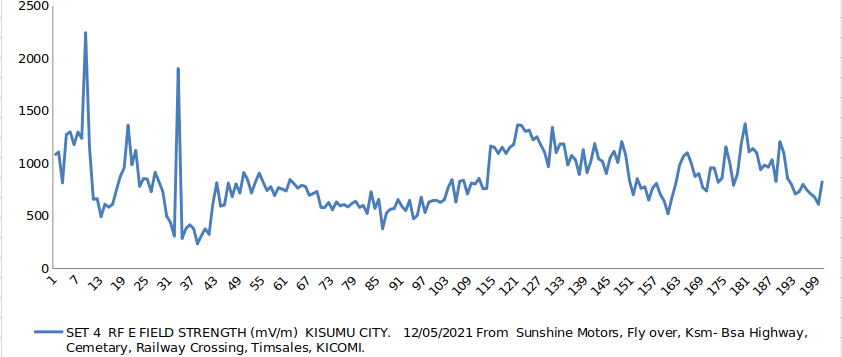

Field location
Kisumu TownField measurements taken from Sunshine Motors, Fly over, Ksm- Bsa Highway, Cemetary, Railway Crossing.
Recorded electric field strength [E] variation at different points
Areas with E-Field above 2[V/m]
The Salvation Army Joyland Special Sec Sch. (2.097 – 4.017)[V/m]
The Kenya Polytechnic (2.136 – 4.107)[V/m]
Manyatta Market Sheds (2.218 -12.388)[V/m]
KMTC Kondele (3.082 – 4.426)[V/m]
Obunga Fly Over(2.02 – 4.722)[V/m]
The Salvation Army Joyland Special Sec Sch. (2.097 – 4.017)[V/m]
The Kenya Polytechnic (2.136 – 4.107)[V/m]
Manyatta Market Sheds (2.218 -12.388)[V/m]
KMTC Kondele (3.082 – 4.426)[V/m]
Obunga Fly Over(2.02 – 4.722)[V/m]

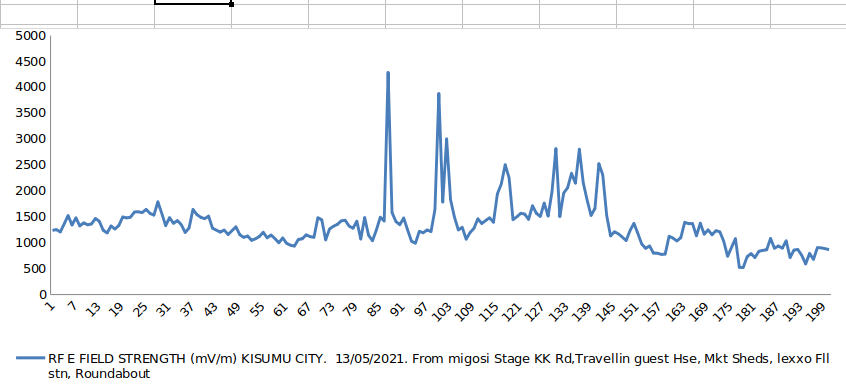

Field location
Kisumu TownField measurements taken from migosi Stage KK Rd,Travellin guest Hse, Mkt Sheds, lexxo /Fly Over.
Recorded electric field strength [E] variation at different points
Areas with E-Field above 2[V/m]
Steel Factory kibos Road. (2.057 – 5.580)[V/m]
Kenya Inndustrial Research Dev. Inst (2.094 – 4.685)[V/m]
Lolwe estate Migosi (2.104 – 4.140)[V/m]
Shivling Suprmaket KK Rd 92.134 – 4.289)[V/m]
Market sheds KK Rd (3.006 – 3.881)[V/m]
Lexxo filling stn (2.062 – 2.818)[V/m]
Steel Factory kibos Road. (2.057 – 5.580)[V/m]
Kenya Inndustrial Research Dev. Inst (2.094 – 4.685)[V/m]
Lolwe estate Migosi (2.104 – 4.140)[V/m]
Shivling Suprmaket KK Rd 92.134 – 4.289)[V/m]
Market sheds KK Rd (3.006 – 3.881)[V/m]
Lexxo filling stn (2.062 – 2.818)[V/m]
